1KG 1600 Degrees Portable Small Induction Gold Smelting Furnace with 4L Water Chille Kit
Our Price:$1749.00

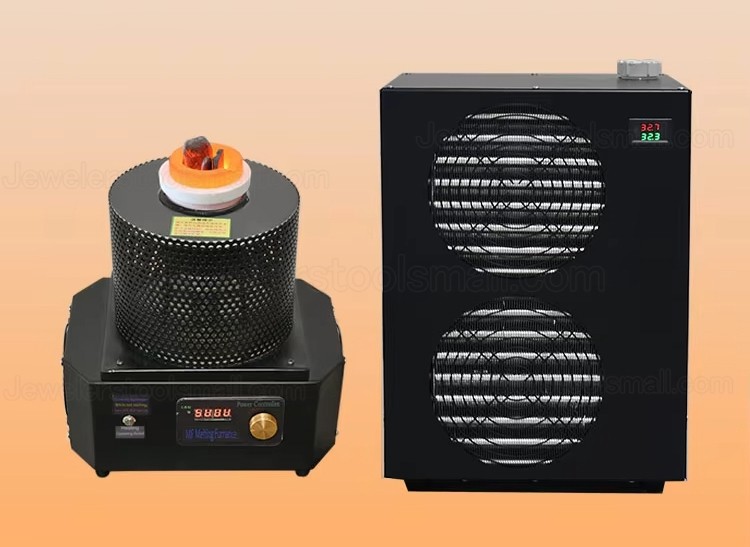

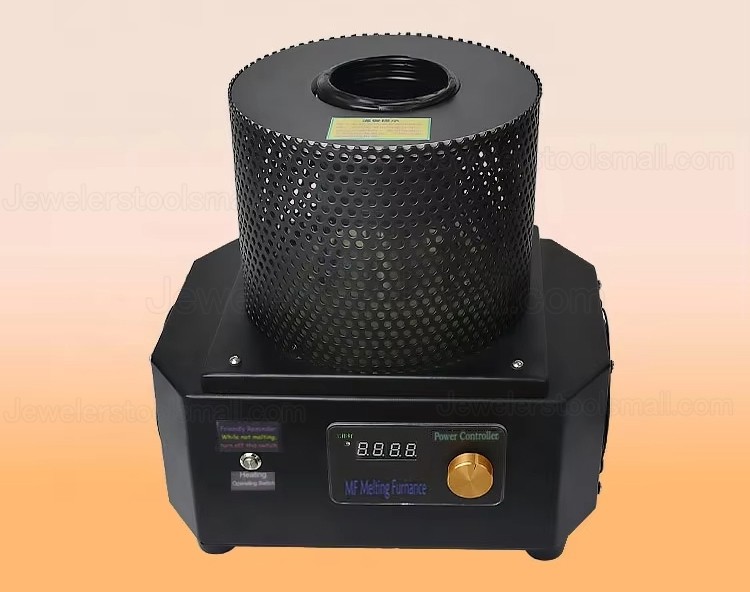

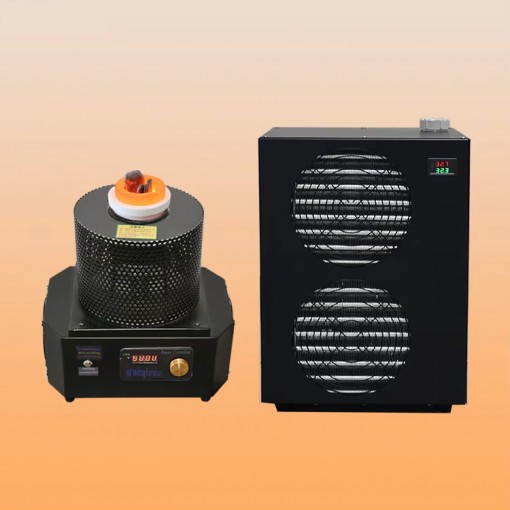

1KG 1600 Degrees Portable Small Induction Gold Smelting Furnace with 4L Water Chille Kit
This furnace is specifically designed for refining noble metals including gold, silver, copper, platinum, and iron. It features medium frequency induction heating and DSP digital control circuit techniques, allowing the actual heating temperature to reach up to 1600℃.
Advantages:
Used for refining precious metals like gold, silver, copper, and iron.
Utilizes magnetic heat technology for simplified operation, fast melting speeds, low energy consumption, compact machine volume, and minimal external heat retention.

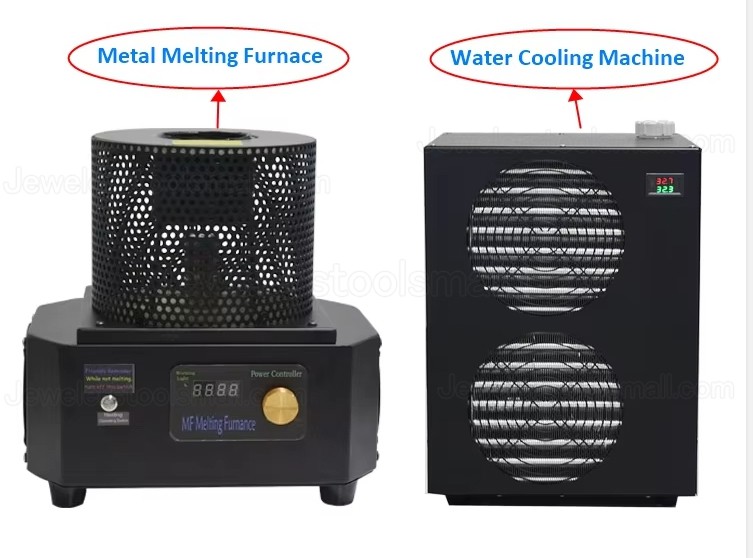

Comes equipped with chilling equipment, making it a versatile furnace with water chiller functionality.
| Product Model | MM-1000 | MM-2000 | MM-3000 |
|---|---|---|---|
| Voltage | 190-235V | 190-235V | 190-235V |
| Power | 3500W | 5000W | 5000W |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Maximum Temperature | 1600°C | 1600°C | 1600°C |
| Leakage Circuit Breaker Minimum | 20A | 25A | 25A |
| Cross-sectional Area of Wire Minimum | 1.5mm² | 2.5mm² | 2.5mm² |
| Gold Capacity | 1000g | 2000g | 3000g |
| Melting Speed | 5 minutes for Gold, Silver, Copper | 5 minutes for Gold, Silver, Copper | 5 minutes for Gold, Silver, Copper |
| Net Weight | 8.0kg | 8.0kg | 8.0kg |
| Dimensions | 315 x 295 x 310 mm | 315 x 295 x 310 mm | 315 x 295 x 310 mm |
